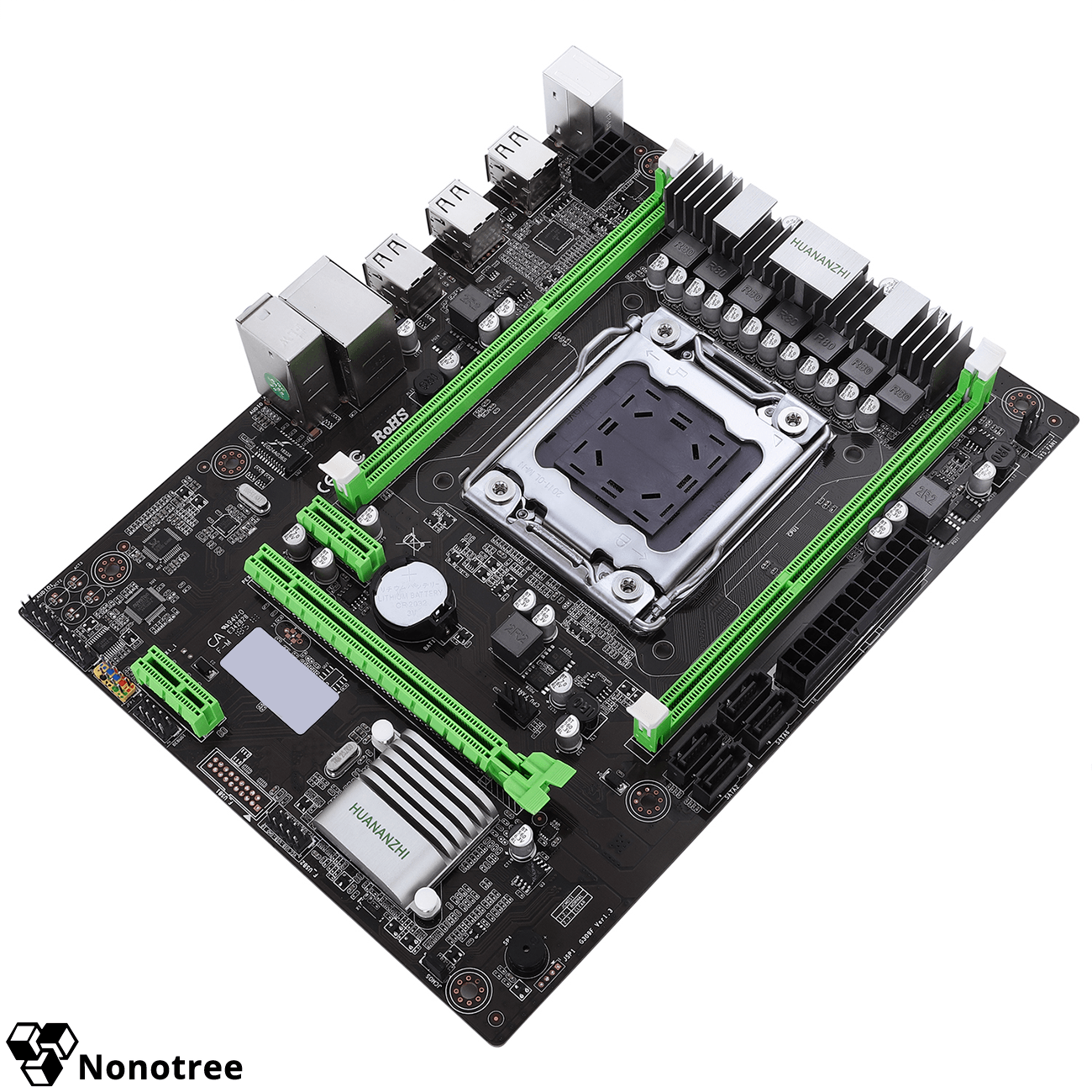

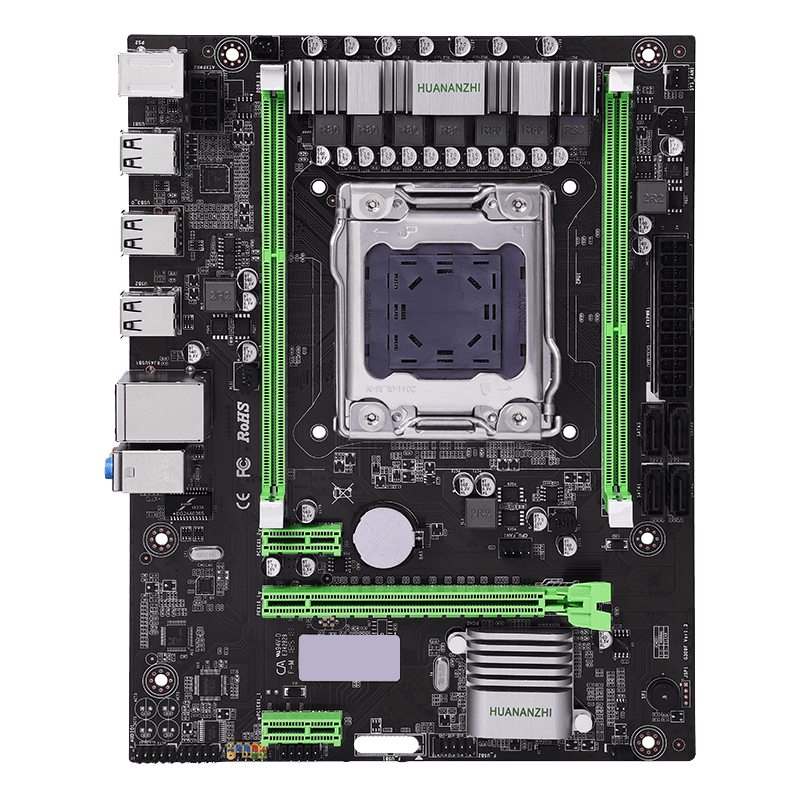

| Mainboard | HUANANZHI X79M-PRO (2.0) |
| Platform | Intel® X79, LGA2011 |
| Memory | 2 x DIMM, Max. 2 x 32GB, DDR3 1866/1600/1333 MHz,
Supports ECC or non-ECC Memory, Dual Channel Memory Architecture |
| Graphic | No display output port
Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC662 5.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 1 x 10/100/1000 Mbit LAN Controller(s) |
| Expansion Slots | 1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 |
| Storage | 4 x SATA2.0 (3GB/s) port(s) |
| Internal I/O Ports | 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) |

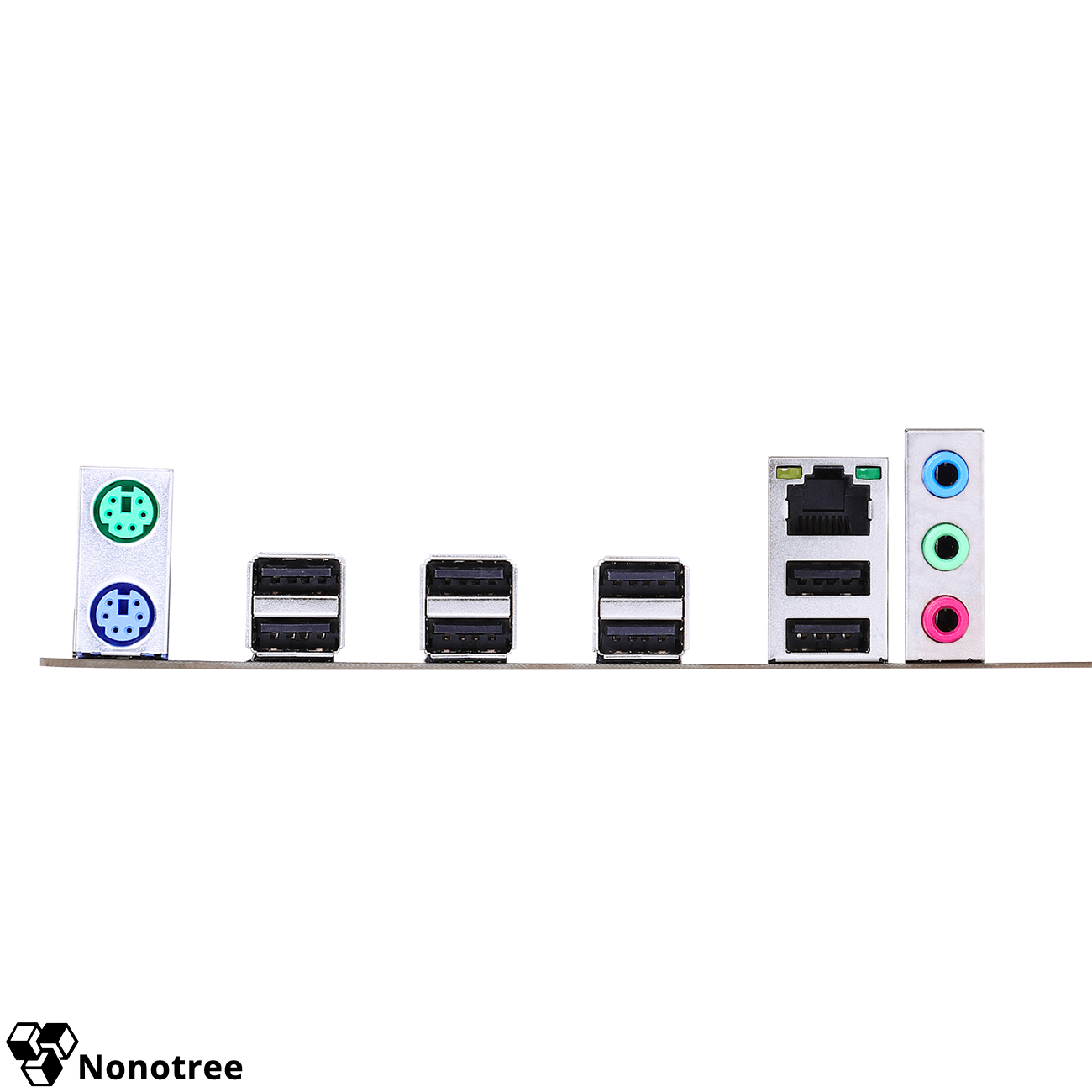

| Back I/O Ports | 1 x PS/2 Keyboard and Mouse 1 x LAN (RJ45) port(s) 8 x USB 2.0 3 x Audio jack(s) |
| Form Factor | ATX Form Factor; 23.5cm x 18.0cm |
| Packing list | 1 x I/O Shield, 1 x SATA Cable, 1 x Manual |
