Dual processor, support Intel LGA2011-3 processor
Eight DDR4 memory slots, single-processing four-channel, support DDR4 1866/2133/2400MHz, up to 512G memory
Support ECC server memory/desktop general-purpose memory
Support 7.1 channel ALC897 chip

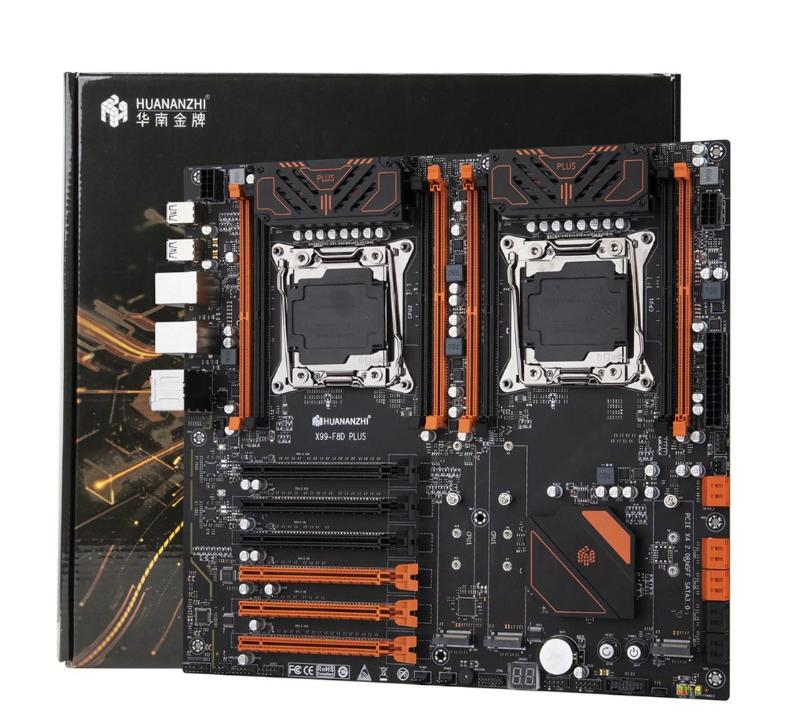

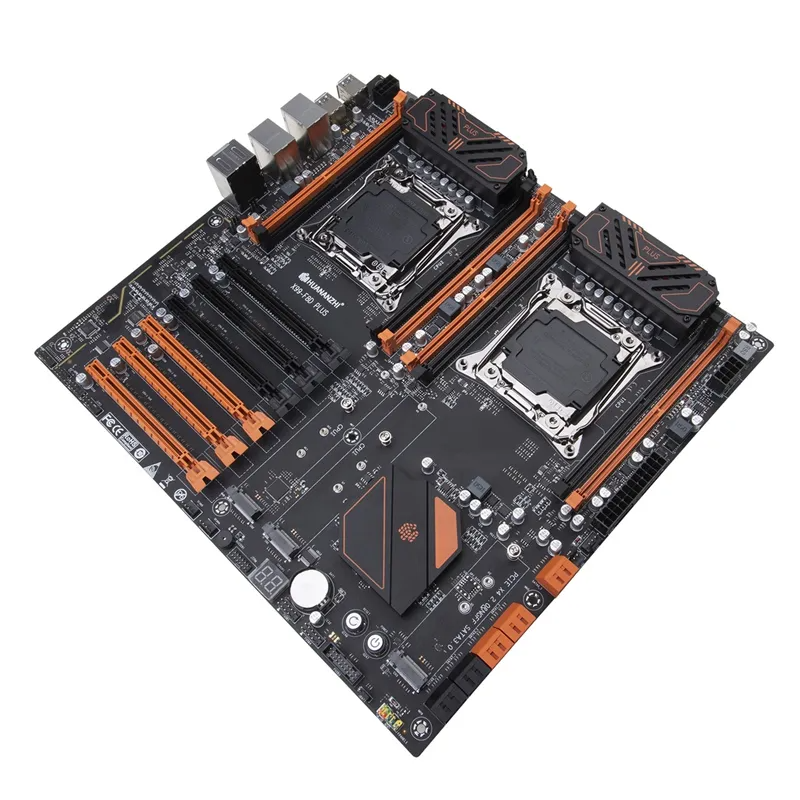

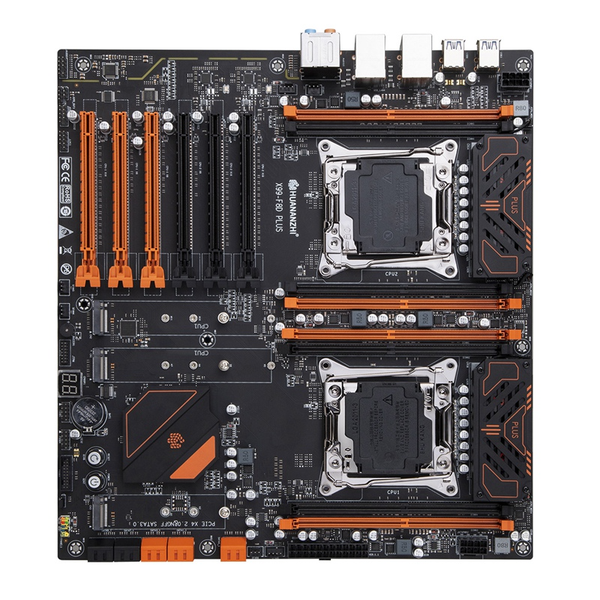

2x M.2 22110 NVME PCIE X4 3.0, 1x M.2 2280 NVME PCIE X4 2.0@NGFF SSATA3.0 6Gb/s (will occupy one SSATA signal when used). Motherboard model: X99-F8D PLUS dual-channel motherboard
CPU pin: Support Intel LGA2011-3 platform processor
Memory slots: 8 x DDR4 memory slots
Storage interface: 6 x SATA3.0 6Gb/s; 4 x SSATA3.0 6Gb/s
Expansion Slots: 3 x PCI Express 3.0 x16 slots; 3 x PCI Express 3.0 x8 slots
Expansion interface: 2 x M.2 22110 NVME PCIE X4 3.0, 1 x M.2 2280 NVME PCIE X4 2.0@NGFF SSATA3.0 6Gb/s (one SSATA signal will be used when used)
Onboard sound card: 7.1 channel ALC897
Onboard network card: dual 2.5G network card RTL8125BG
Power interface: 24PIN+8PIN+8PIN
Fan interface: 2 x CPU_FAN pins, 4 x SYS_FAN pins
Number of PCB layers: 8+8-phase power supply, 12-layer PCB
Rear panel interface: 4 x USB2.0 interfaces, 4 x USB3.0, 2 x network interfaces, 1 x 6-hole audio interface
Front panel interface:
2 sets of USB2.0 pins, 1 set of USB3.0 pins, 1 set of front audio pins, 1 set of COM pins, 1 set of power-on pins, 1 set of 14-pin TPM, 1 x motherboard buzzer, 1 x Motherboard diagnostic card, 1 set of power on/restart button
Support system: Windows7 Windows10 Windows11
BIOS: AMI UEFI BIOS
Motherboard specification: 305 x 330MM E-ATX form factor
Material: PCB
Colour: Black
Note: The appearance of different batches of products may be different, which does not affect the use.
Package Contents:
1 x Motherboard
1 x Baffle
2 x SATA Cable(Random Color And Appearance Do not accept designation)
|
