AMD THREADRIPPER ONLY | ||
TDP | 280W | |
Overall Dimension | 140x122x157mm (L×W×H) | |

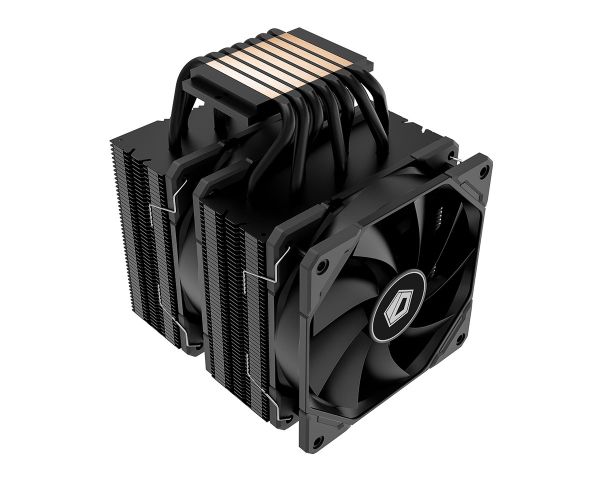

Heatsink Material | 7×Ф6mm Copper Heatpipe+Aluminum Fin | |
Weight | 1300g(with fan/accessory) | |
| Fan 1 | Fan 2 |
Fan Dimension | 120×120×25mm | 120×120×25mm |
Fan Speed | 700-1800RPM(PWM) | 700-1800RPM(PWM) |
Max. Air Flow | 76.16CFM | 76.16CFM |
Max. Static Pressure | 2.16mmH2O | 2.16mmH2O |
Noise | 15.2-35.2dB(A) | 15.2-35.2dB(A) |
Rated Voltage | 12VDC | 12VDC |
Operating Voltage | 10.8～13.2VDC | 10.8～13.2VDC |
Started Voltage | 7VDC | 7VDC |
Rated Current | 0.25A | 0.25A |
Power Input | 3W | 3W |
Bearing Type | Hydraulic Bearing | Hydraulic Bearing |
Connector | 4Pin PWM | 4Pin PWM |
