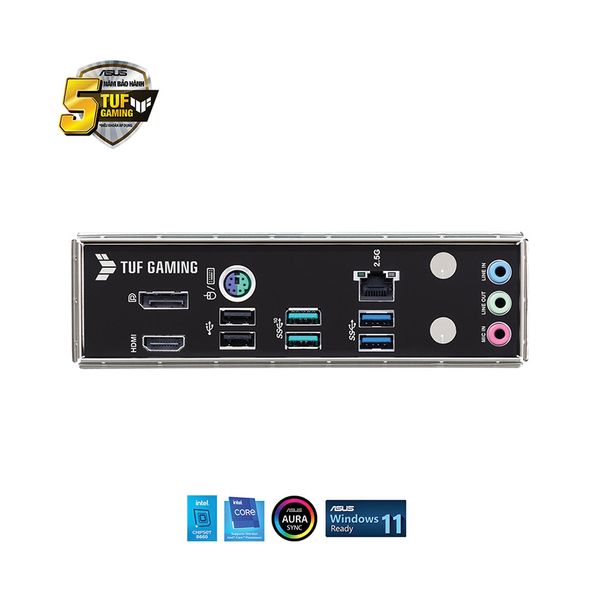

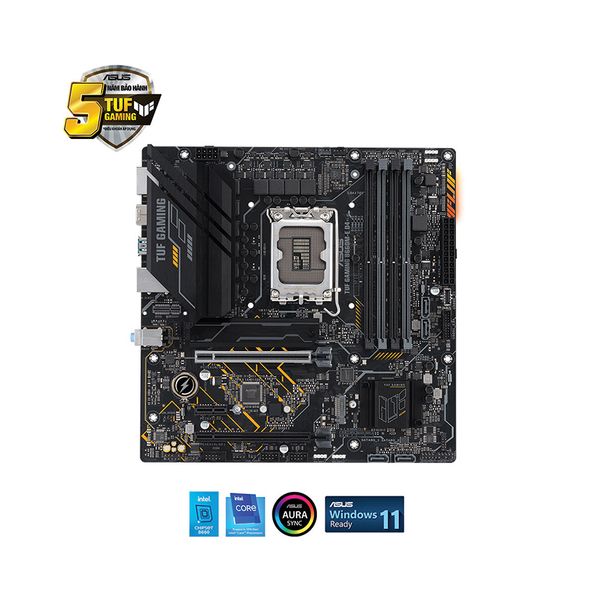

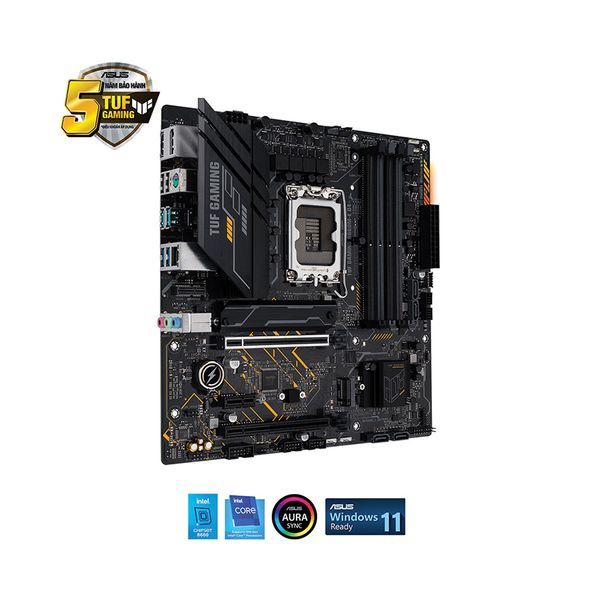

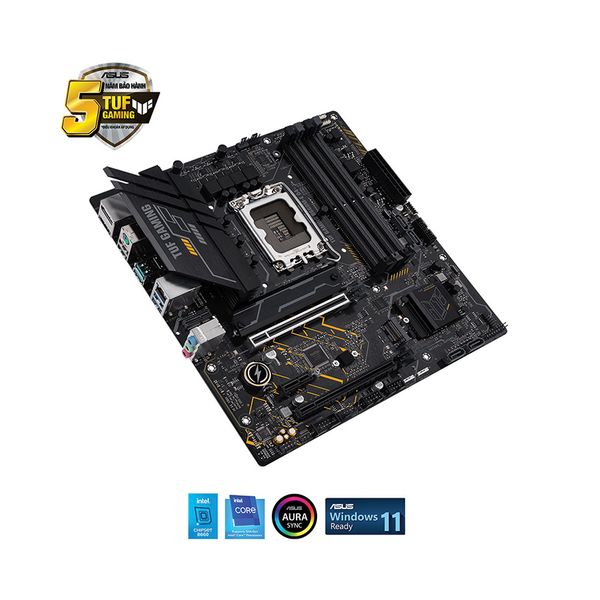

Main Asus B660M-E TUF GAMING D4

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

TUF GAMING B660M-E D4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DDR4 DIMM Slots ( tối đa 128GB )

Khe cắm mở rộng

Intel® 12th Gen Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
Intel® B660 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)***
1 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots

LAN / Wireless

LAN: 1 x Intel® 2.5Gb Ethernet
