BẢNG THÔNG SỐ CHI TIẾT:
| Superb Productivity | - PCIe Gen5 (M.2) |
| - Dual Channel DDR5 | |
| Rock-Solid Durability | - 8+2+1 Power Phase, 50A Dr.MOS |
| - Pre-Installed I/O Shield | |
| Ultrafast Connectivity | - 2.5G LAN, 802.11ax Wi-Fi 6E Module |
| EZ Update | - BIOS Flashback Button |
| - ASRock Auto Driver Installer | |
| EZ Troubleshooter | - ASRock Post Status Checker |
| CPU Support | - Supports AMD Socket AM5 Ryzen™ 7000 Series |
| Processors | |
| Chipset | - AMD B650 |
| Memory | - Dual Channel DDR5 Memory Technology |
| - 4 x DDR5 DIMM Slots | |
| - Supports DDR5 ECC/non-ECC, un-buffered memory | |
| up to 7200+(OC)* | |
| - Max. capacity of system memory: 192GB | |
| - Supports XMP and EXPO memory modules | |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Integrated AMD RDNA™ 2 graphics |
| - HDMI 2.1 and DisplayPort 1.4 support | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| - Nahimic Audio | |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| - Dragon RTL8125BG | |
| - Supports Dragon 2.5G LAN Software | |
| - Smart Auto Adjust Bandwidth Control | |
| - Visual User-Friendly UI | |
| - Optimized Default Setting for Game, Browser, | |
| and Streaming Modes | |
| - User Customized Priority Control | |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module |
| - Supports Dual-Band 2x2 with extended 6GHz band | |
| support | |
| - Bluetooth 5.2 + High-speed class II support | |
| - Supports MU-MIMO | |
| Expansion Slots | - 1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode |
| - 1 x PCIe 3.0 x16 Slot (PCIE2) supports x4 mode | |
| - 1 x M.2 Socket (Key E) for WiFi/BT PCIe module | |
| - Supports AMD CrossFire™ | |
| - 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | - Blazing M.2 Socket (M2_1) supports PCIe Gen5x4 |
| (128 Gb/s) mode* | |
| - Hyper M.2 Socket (M2_2) supports PCIe Gen4x4 | |
| (64 Gb/s) mode* | |
| - M.2 Socket (M2_3) supports PCIe Gen4x2 (32 Gb/s) | |
| - 4 x SATA3 6.0 Gb/s Connectors | |
| - Supports RAID 0, RAID 1, RAID 10 for SATA and | |
| M.2 NVMe storage devices* | |
| USB Ports | - 1 x USB 3.2 Gen2 Type-C (Rear) |
| - 1 x USB 3.2 Gen2 Type-A (Rear) | |
| - 1 x USB 3.2 Gen1 Type-C (Front) | |
| - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) | |
| - 8 x USB 2.0 (4 Rear, 4 Front) | |
| Connectors | - SPI TPM Header |
| - Power LED and Speaker Header | |
| - RGB LED Header* | |
| - Addressable LED Headers** | |
| - Various fan connectors with Smart Fan Speed | |
| Control*** | |
| - ATX Power and 12V Power Connectors | |
| - Thunderbolt™ AIC Connector (5-pin) | |
| - USB Headers for 2.0 and 3.2 Gen1 | |
| - Front Panel Type C USB 3.2 Gen1 Header | |

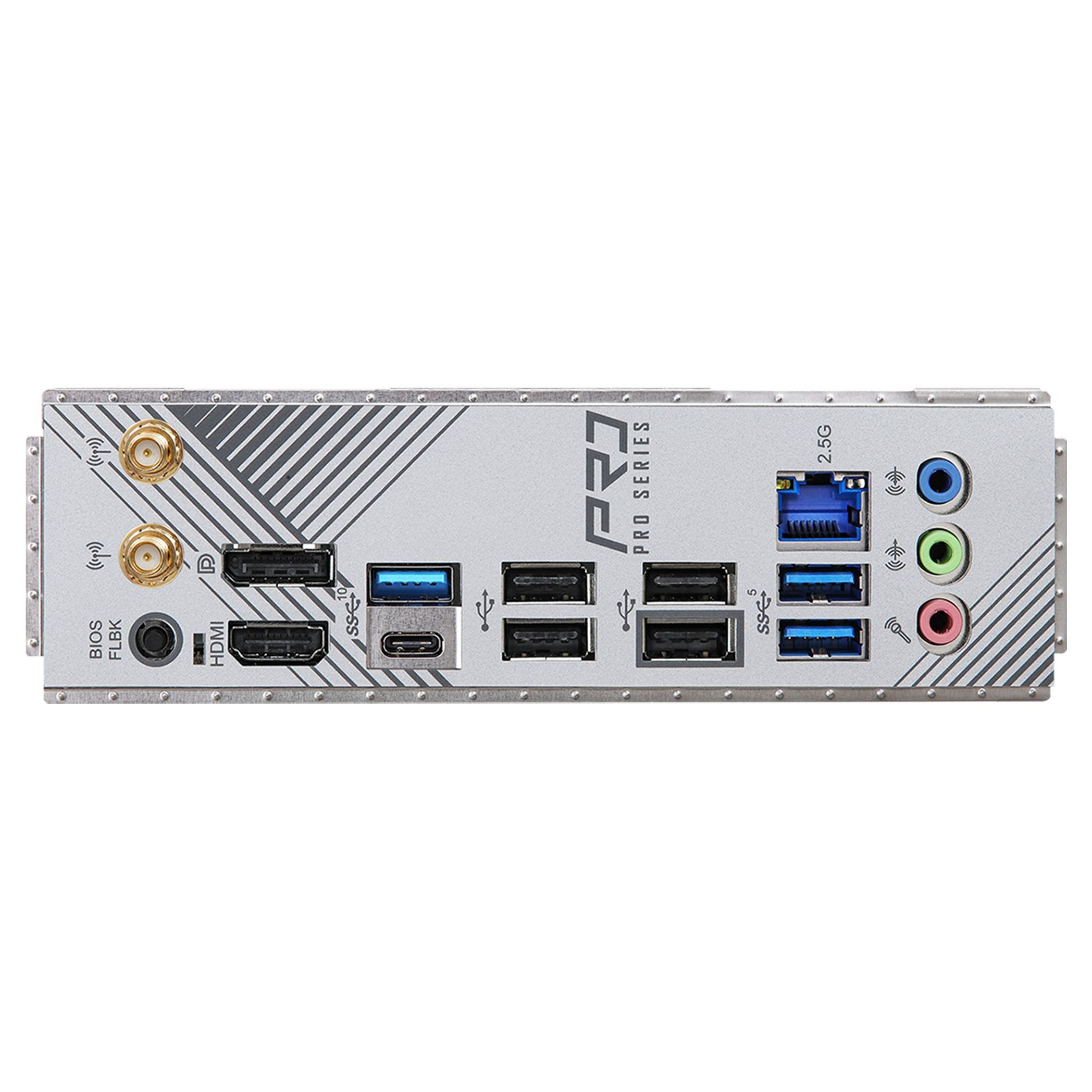

| Rear I/O Ports | - Antenna Ports (2x) |
| - HDMI Port | |
| - DisplayPort 1.4 | |
| - USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| - USB 3.2 Gen2 Type-C Port (10 Gb/s) | |
| - USB 3.2 Gen1 Ports (2x) | |
| - USB 2.0 Ports (4x) | |
| - RJ-45 LAN Port | |
| - BIOS Flashback Button | |
| - HD Audio Jacks: Line in/Front Speaker/Microphone | |
| Software and UEFI | - ASRock Motherboard Utility (A-Tuning) |
| - ASRock Dragon 2.5G LAN Software | |
| - ASRock Polychrome SYNC* | |
| - ASRock Full HD UEFI | |
| - ASRock Auto Driver Installer | |
| - ASRock Instant Flash | |
| Accessories | - User Manual |
| - SATA Data Cables (2x) | |
| - ASRock WiFi Antennas (2.4/5/6 GHz) (2x) | |
| - Screws for M.2 Sockets (3x) | |
| - Standoff for M.2 Socket | |
| Form Factor | - Micro ATX (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) |
| Operating System | - Microsoft® Windows® |
