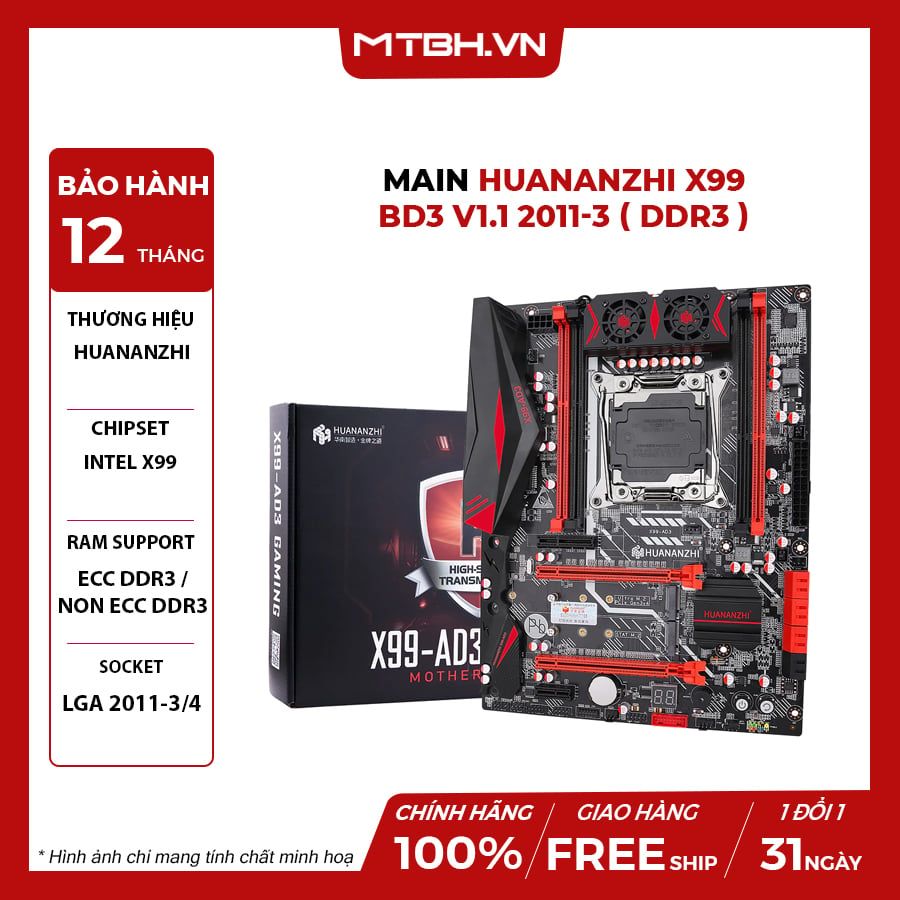

Main HUANANZHI X99 BD3 v1.1 2011-3 ( DDR3 )

HUANANZHI X99-BD3 v1.1

Intel® B85, LGA2011-3

4 x DIMM, Max. 4 x 32GB, DDR3 1866/1600/1333 MHz,
Supports ECC or non-ECC Memory, 4 Channel Memory Architecture *CPU support DDR3

No display output port,
Supports NVIDIA® and AMD® Graphics Cards

Realtek® ALC662 5.1-Channel, High Definition Audio CODEC

Realtek® RTL8111G, 1 x 10/100/1000 Mbit/s LAN Controller(s)

2 x PCIe 3.0 x16,
1 x PCIe 3.0 x4,
1 x PCIe 2.0 x1

4 x SATA3.0 (6GB/s) port(s),
2 x SATA2.0 (3GB/s) port(s),
1 x M.2 Socket 3, NVMe,
1 x M.2 Socket 3, SATA

1 x USB 2.0 connector support additional 2 x USB 2.0 port(s)
1 x USB 3.0 connector support additional 2 x USB 3.0 port(s)
1 x CPU Fan connector(s) (1 x 4-pin)
3 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x POST codes display LED

1 x LAN (RJ45) port(s)
6 x USB 2.0
2 x USB 3.0
3 x Audio jack(s)

ATX Form Factor; 28.3cm x 21.5cm
