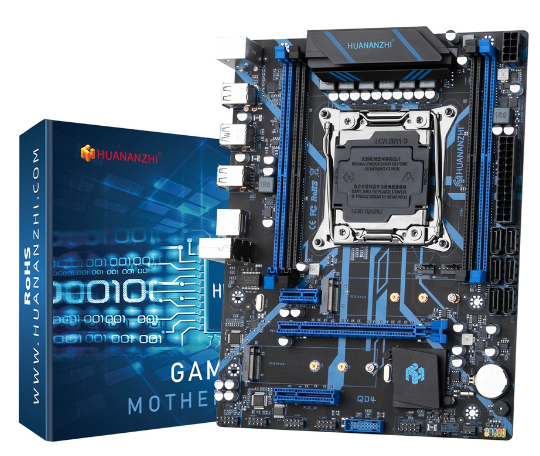

THÔNG TIN VỀ MAINBOARD HUANANZHI X99 QD4 SOCKET LGA 2011-3
Model | HUANANZHI X99-QD4 Motherboard |
CPU Socket | Supports Intel LGA2011-3 platform processors |
Ｍemory Socket | 4*DDR4 Notebook memory socket，Maximum Memory Capacity 128G |
Ｍemory Standard | Support Four-channel DDR4 2400/2133/1866MHz |
| SATA Inderface | 6 *SATA3.0 6Gb/s interface |
Extended Inderface
|
2*M.2 2280 NVME PCIE X4 3.0 32Gb/s；4*USB2.0；2*USB3.0；1*network interface； 1*3-hole audio interface |
Expansion Slots | 1*PCI Express 3.0 x16；1*PCI Express 3.0 x4；1*PCI Express 2.0 x1 |
Soud Track | Realtek High Definition Audio |
Network interface | Gigabit Ethernet |
Power interface | 24pin+8pin |
Fan interface | 2 *CPU_FAN + 1* SYS_FAN |
PCB layer | 8 layer PCB，6Phases power supply |
Dimension | 245*190MM M-ATX |
Packing list | 1*SATA line |
