CPU
AMD Socket AM5 Ryzen™ 7000 Series Processors:Supported
CHIPSET
AMD:B650
MEMORY
DIMM Slots:4, DDR5 only
Max Memory Support:128GB
Memory Architecture:Dual-Channel
OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
Extreme Memory Profile (XMP):Supported
EXTended Profiles for Overclocking (EXPO):Supported
EXPANSION SLOTS
PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks)
M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1
INTEGRATED GRAPHICS
Integrated AMD RDNA™ 2 graphics:Supported
HDMI 2.1 TMD Compatible:1
HDR:Supported
HDCP 2.3:max. resolution up to 4K 60Hz
STORAGE
M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1
M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1
SATA 6Gb/s ports:4
RAID 0/1/10 for SATA storage devices:Supported
RAID 0/1/10 for M.2 NVMe storage devices:Supported
NVMe SSD as boot disks:Supported
LAN
Realtek®:RTL8125BG 2.5G LAN
WIRELESS
802.11ax Wi-Fi 6E Module:Supported
Bluetooth:V5.2
AUDIO
Realtek®:ALC1220 Codec

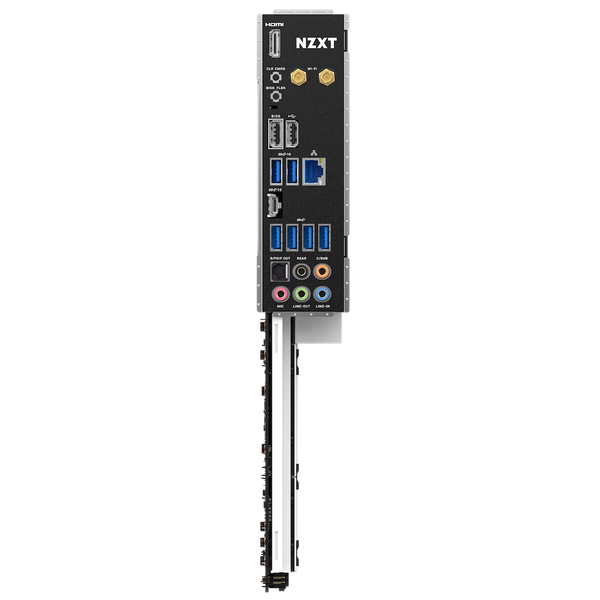

REAR I/O
Wireless antenna SMA connectors:2
HDMI™ port:1
USB 2.0:2
USB 3.2 Gen 2 Type-C port:1
USB 3.2 Gen 2 ports:2
USB 3.2 Gen 1 ports:4
Clear CMOS button:1
BIOS Flashback button:1
LAN (RJ45) port:1
Audio jacks:5
Optical S/PDIF Out port:1
INTERNAL I/O
24-pin ATX power connector:1
8+4-pin ATX 12V power connector:1
4-pin CPU_FAN connector:1
4-pin AIO_PUMP connector:1
4-pin SYS_FAN connectors:5
NZXT RGB LED connectors:4
5V ARGB LED connector:2
USB 2.0 header (Up to 6 USB 2.0 ports):3
USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2
USB 3.2 Gen2x2 front panel header (For USB Type-C):1
Front panel audio connector:1
Power button:1
Reset button:1
POST LEDs:4
GENERAL
System Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system.
Form Factor:ATX
Warranty:3 years
Certifications:FCC, CE, WHQL, ErP/EuP Ready
Model Number:N7-B65XT-W1 (White) / N7-B65XT-B1 (Black)
UPC:810074842877 (White) / 810074842884 (Black)
EAN:5056547202815 (White) / 5056547202822 (Black)
