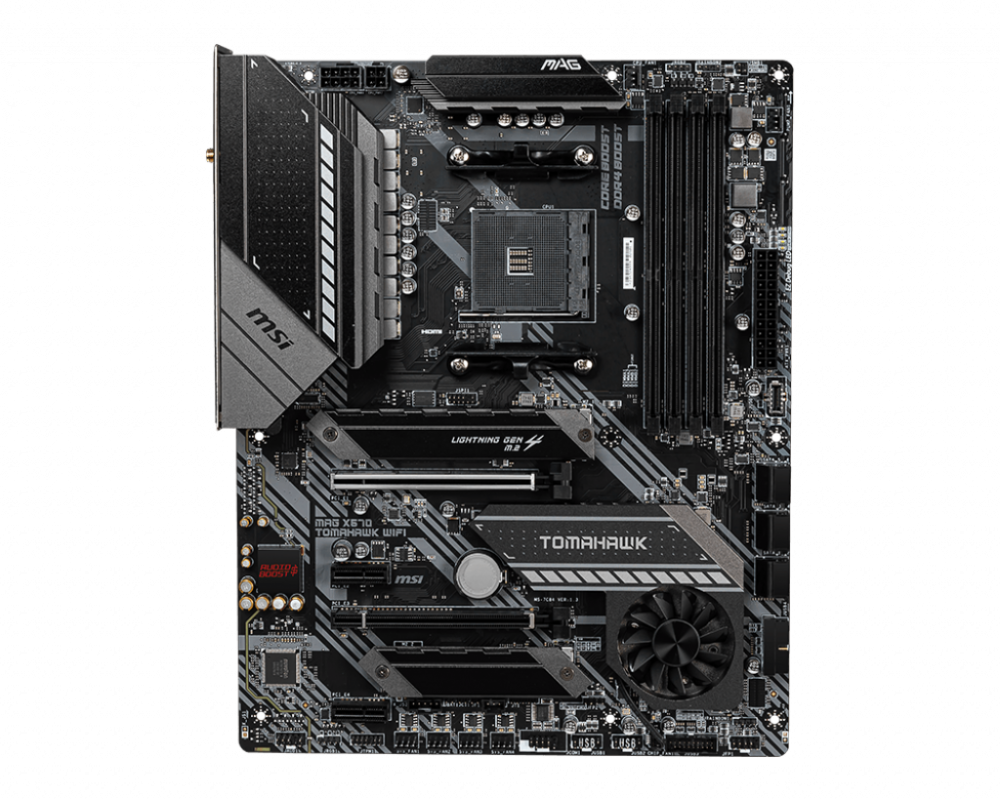

MAIN MSI X570 MAG TOMAHAWK WIFI (AMD)

  • Thương hiệu: MSI
  • Loại: MAINBOARD
  • SKU: SP009972

Tại Máy Tính Biên Hòa: 5,690,000₫

  • GIAO HÀNG
    GIAO HÀNG
    Miễn phí giao hàng toàn quốc thông qua các đơn vị vận chuyển cho Hóa đơn trên 500,000đ
  • SẢN PHẨM
    SẢN PHẨM
    Cam kết hàng mới 100% - Bảo hành chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    1 đổi 1 lên đến 31 ngày nếu phát sinh lỗi do nhà sản xuất
  • Hỗ trợ
    Hỗ trợ
    Thứ 2 - CN: 08:00 - 21:00 Hotline: 1800.799.999

Chia sẻ ngay

New 100% Chính hãng

Bảo hành 36T

Processor

Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® X570 Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB 1
    • 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600+ Mhz by A-XMP OC MODE
    • 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466+ Mhz by A-XMP OC MODE
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.

Expansion Slots

  • 1x PCIe 4.0/3.0 x16 slot (PCI_E1)
    • 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
    • 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
    • Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
  • 1x PCIe 4.0/3.0 x16 slot (PCI_E3), supports x4 mode
  • 2x PCIe 3.0 x1 slots
  1. The speeds may vary for different devices

Onboard Graphics

  • 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz 1 2
  1. Only support when using Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  2. Maximum shared memory of 2048 MB

Multi-GPU

  • Supports 2-Way AMD® CrossFire™ Technology

LAN

  • 1x Realtek® 8125B 2.5Gbps LAN Controller

Wireless LAN & Bluetooth®

Intel® Wi-Fi 6 AX200

  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5.1
  • The Wireless module is pre-install in the M2_WIFI1 (Key-E) slot

Storage

  • 6x SATA 6Gb/s ports (from AMD® X570 Chipset)
  • 2x M.2 slots (Key M) 1
    • M2_1 slot (from AMD® Processor)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD® X570 Chipset)
      • Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
      • Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
  1. The speeds may vary for different devices

RAID

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® X570 Chipset

  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
  • 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® Processor

  • 2x USB 3.2 Gen 2 10Gbps (3rd Gen AMD Ryzen™) or USB 3.2 Gen 1 5Gbps (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC1200 Codec

  • 7.1-Channel High Definition Audio
  • Supports Optical S/PDIF output

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 3.2 Gen 2 10Gbps Type-C Port
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump connector
  • 4x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Clear CMOS jumper
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LEDs

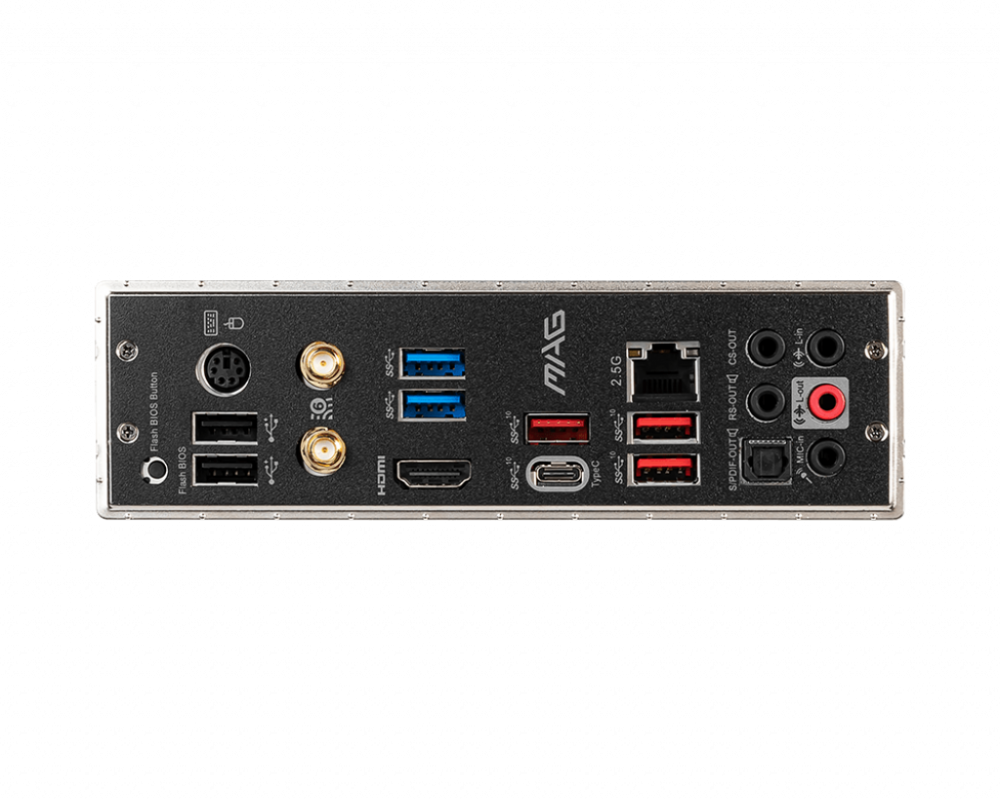

Back panel ports

  1. Keyboard / Mouse
  2. Wireless / Bluetooth
  3. USB 3.2 Gen 1 5Gbps Type A
  4. USB 3.2 Gen 2 10Gbps Type A
  5. 2.5G LAN port
  6. Audio Connectors
  7. Flash BIOS button
  8. USB 2.0
  9. HDMI port
  10. USB 3.2 Gen 2 10Gbps Type C
  11. USB 3.2 Gen 2 10Gbps Type A
  12. Optical S/PDIF out
MAG X570 TOMAHAWK WIFI

I/O Controller

  • NUVOTON NCT6797 Controller Chip

Hardware Monitor

  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Chipset fan speed detection
  • CPU/ System/ Chipset fan speed control

BIOS Features

  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.1, SM BIOS 2.8
  • Multi-language

Form Factor

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Box content

MSI MAG X570 TOMAHAWK WIFI box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.
