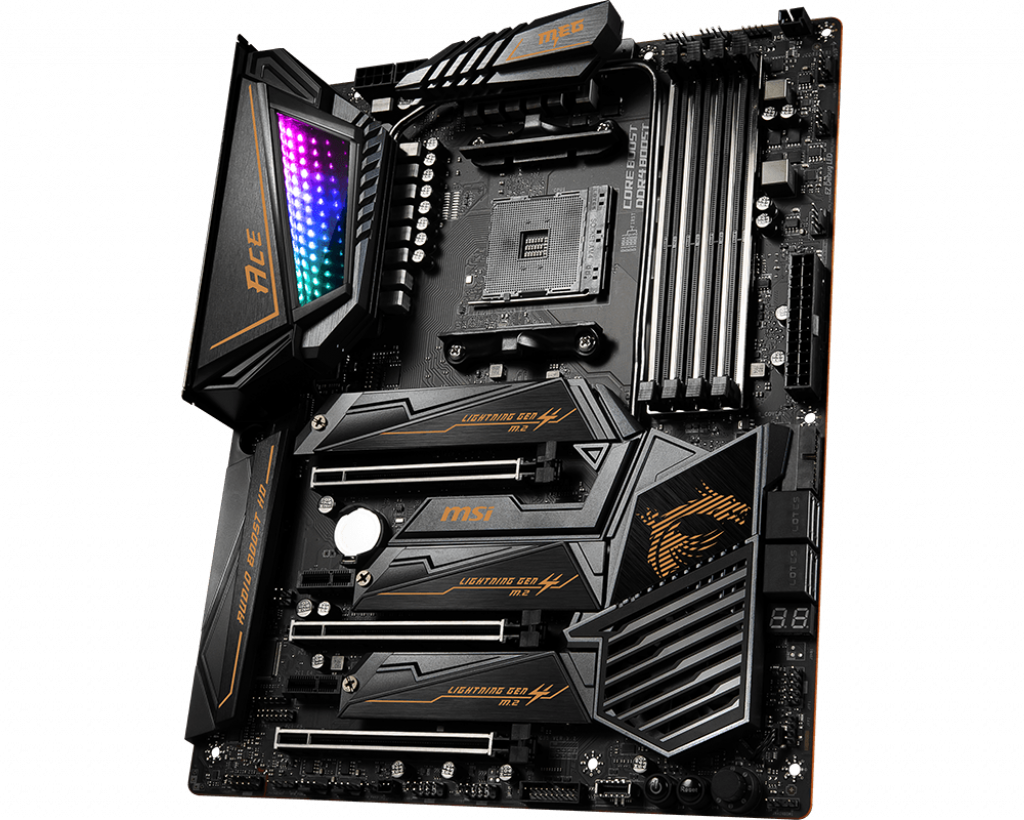

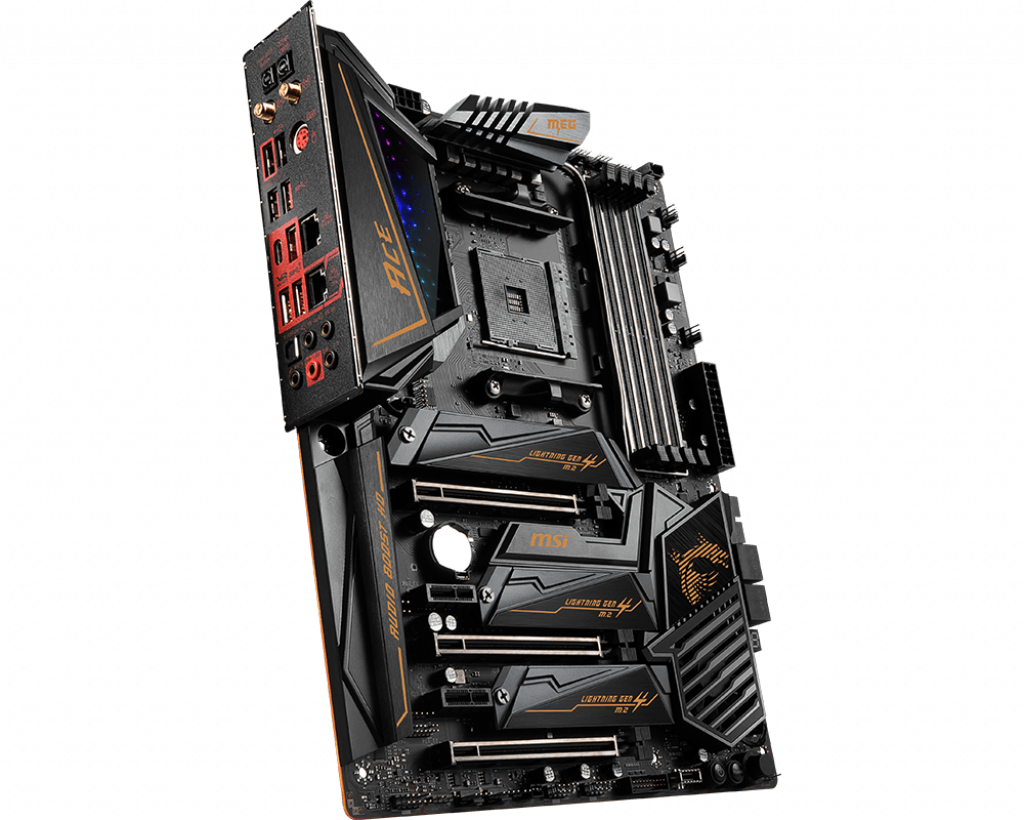

MAIN MSI X570 MEG ACE đến từ thương hiệu main MAIN MSI
PROCESSOR
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
CHIPSET
AMD® X570 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB
- 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE
- 2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
EXPANSION SLOTS
- 2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16/x0, x8/x8 modes
- 2nd Gen AMD Ryzen™ support PCIe 3.0 x16/x0, x8/x8 modes
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode1
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode)
- 2x PCIe 4.0/ 3.0 x1 slots2
- PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen™ processors.
- The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
- The speeds may vary for different devices
MULTI-GPU
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
STORAGE
AMD® X570 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (M2_2/ M2_3, Key M)1
- Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s
- Support 2242/ 2260 /2280 storage devices
AMD® Processor
- 1x M.2 slot (M2_1, Key M)1
- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)
- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)
- Supports 2242/ 2260 /2280/ 22110 storage devices
- The speeds may vary for different devices
RAID
AMD® X570 Chipset
- Supports RAID 0, RAID 1 and RAID 10
USB
AMD® X570 Chipset
- 3x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (2 Type-A ports on the back panel, 1 Type-C internal connector)
- 4x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connectors
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD® Processor
- 2x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel
- 2x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports Optical S/PDIF output
LAN
- 1x Intel® WGI211AT Gigabit LAN controller
- 1x Realtek® RTL8125 2.5 Gbps LAN controller
WIFI & BLUETOOTH
Intel® Wi-Fi 6 AX200
- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
- Supports Bluetooth® 5
- The Wireless module is pre-install in the M2_4 (Key-E) slot
INTERNAL CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 4x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2x USB 3.2 Gen 1 connectors (support additional 4 USB 3.2 Gen 1 ports)
- 1x USB 3.2 Gen 2 Type-C Port
- 1x 4-pin CPU fan connector
- 5x 4-pin system fan connectors
- 1x 4-pin water-pump connector
- 1x Front panel audio connector
- 2x System panel connectors
- 1x TPM module connector
- 1x Clear CMOS jumper
- 1x Chassis Intrusion connector
- 1x Power button
- 1x Reset button
- 1x Game Boost knob
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1x 3-pin CORSAIR connector
- 1x 2-pin LED power input
- 1x Debug Code LED
- 4x EZ Debug LEDs

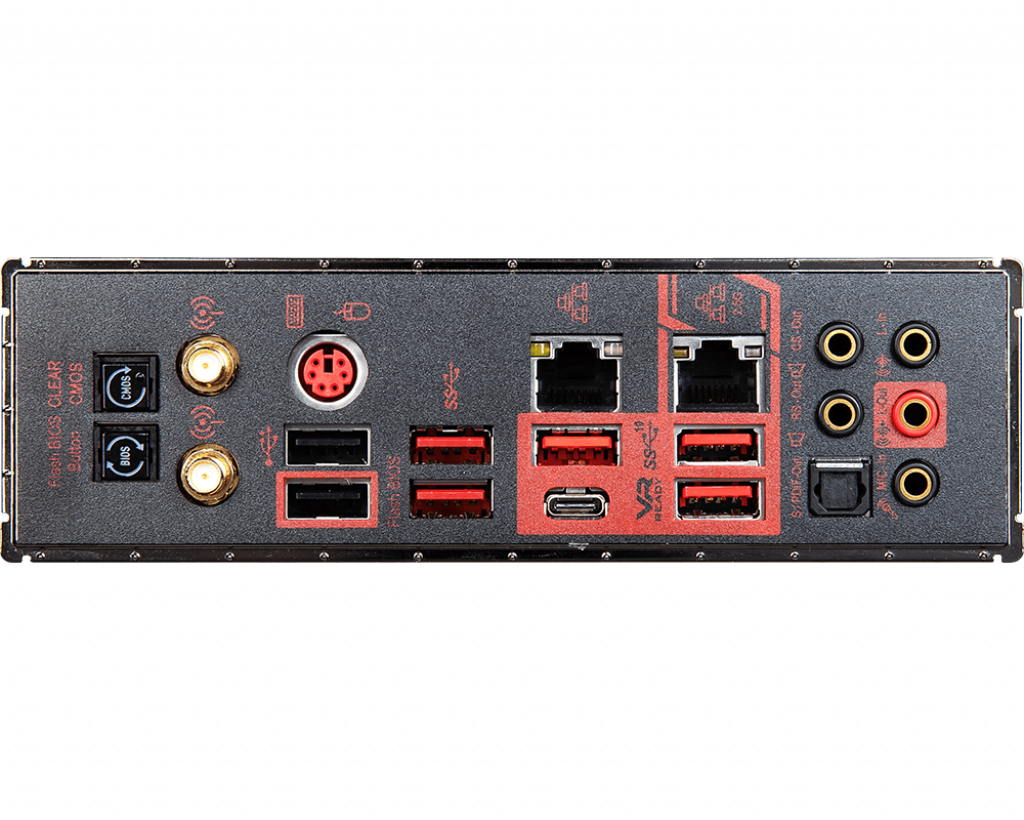

- Clear CMOS Button
- Wi-Fi /Bluetooth Antenna Connectors
- PS/2 GAMING Device Port
- REALTEK 2.5G + Intel Gigabit LAN
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0 Ports
- USB 3.2 Gen1 Ports
- USB 3.2 Gen2 Ports Type A+C
- USB 3.2 Gen2 Ports
DIMENSIONS
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
