THÔNG SỐ KỸ THUẬT

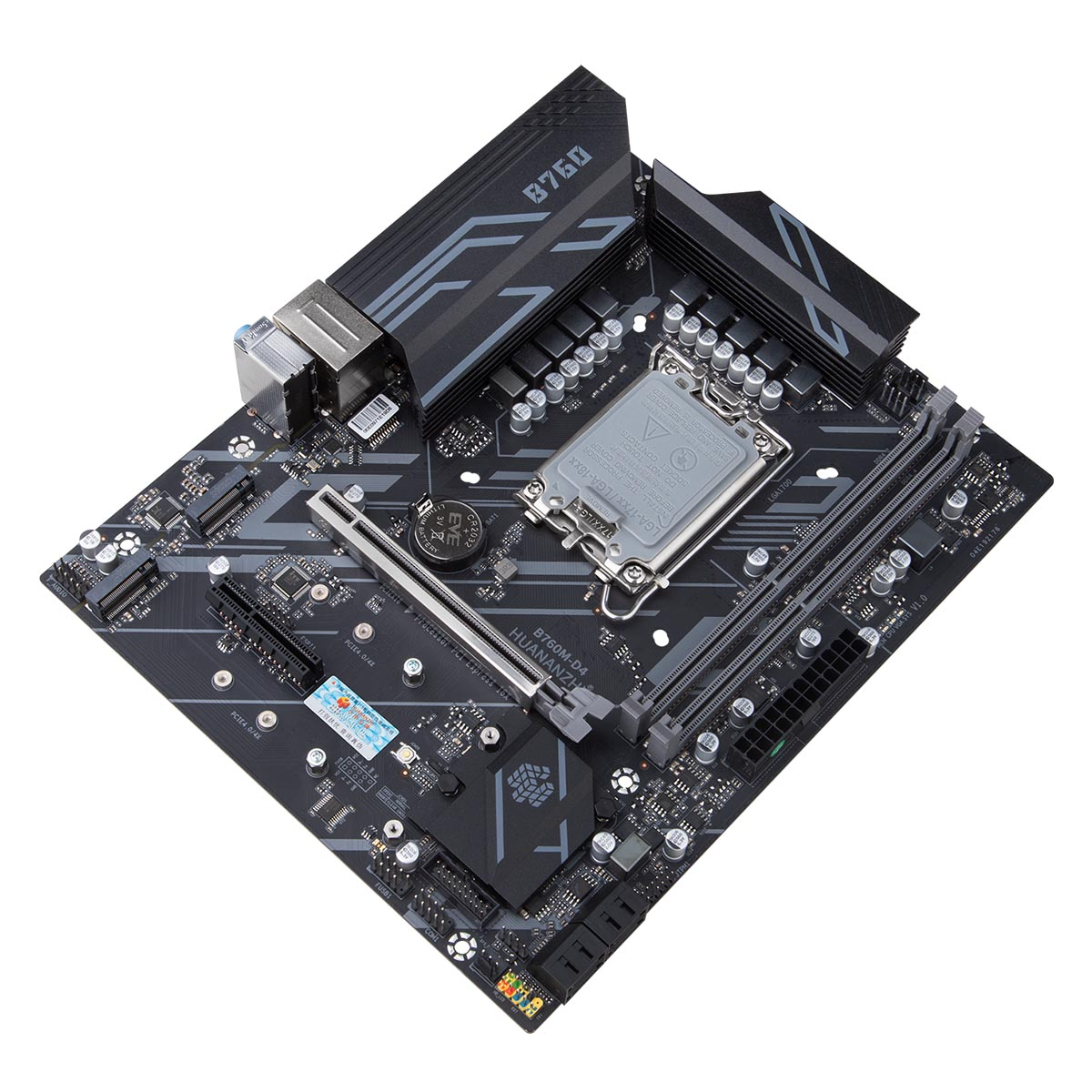

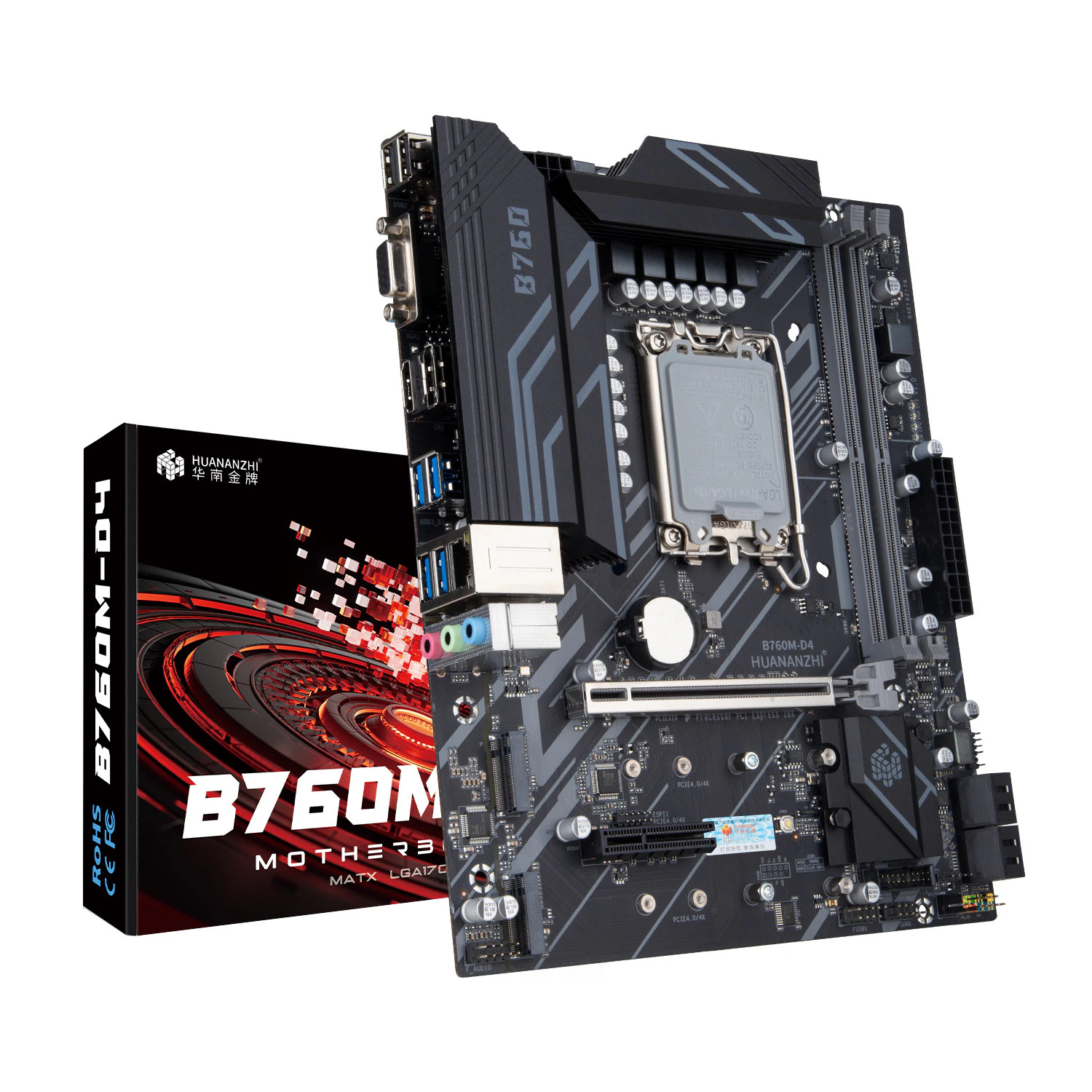

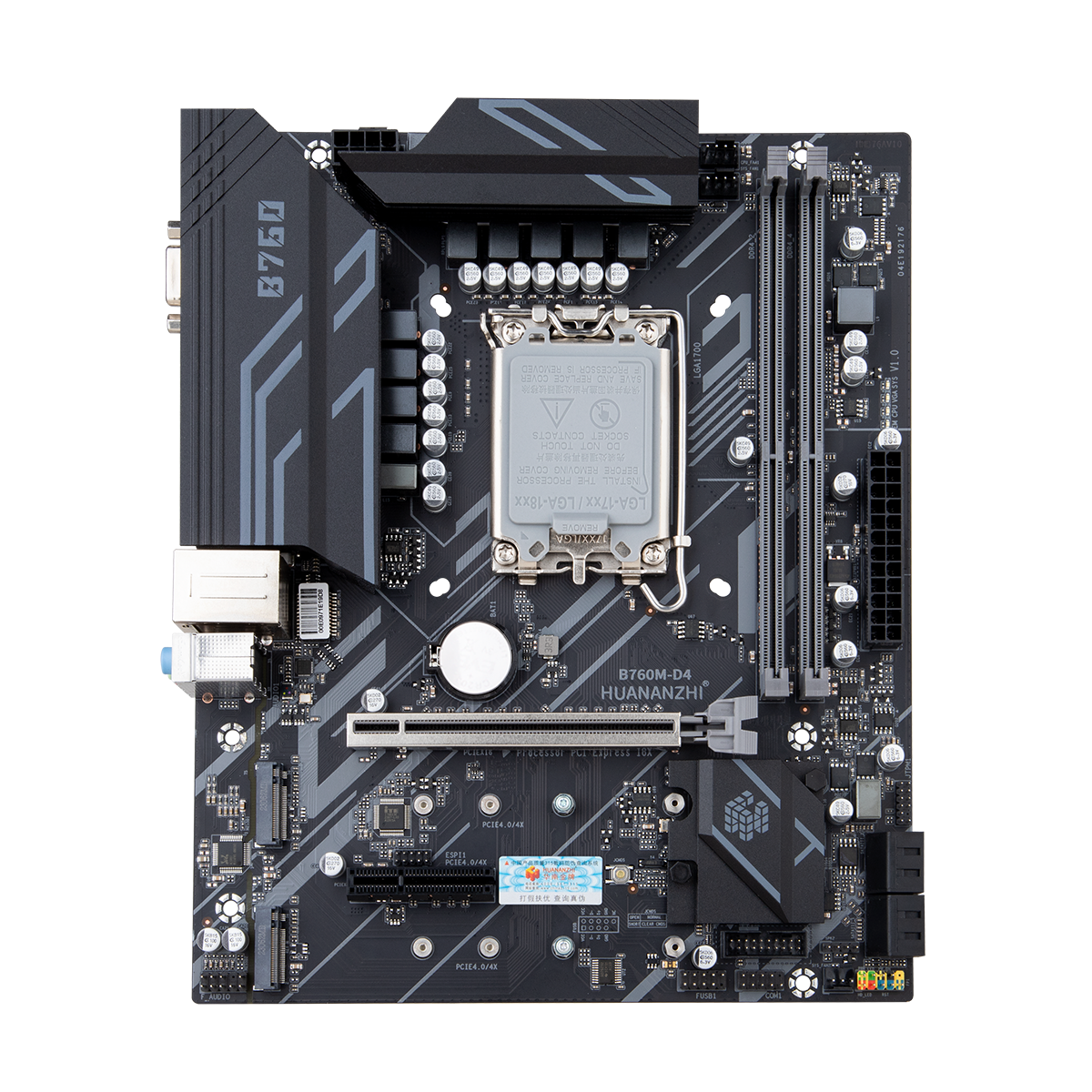

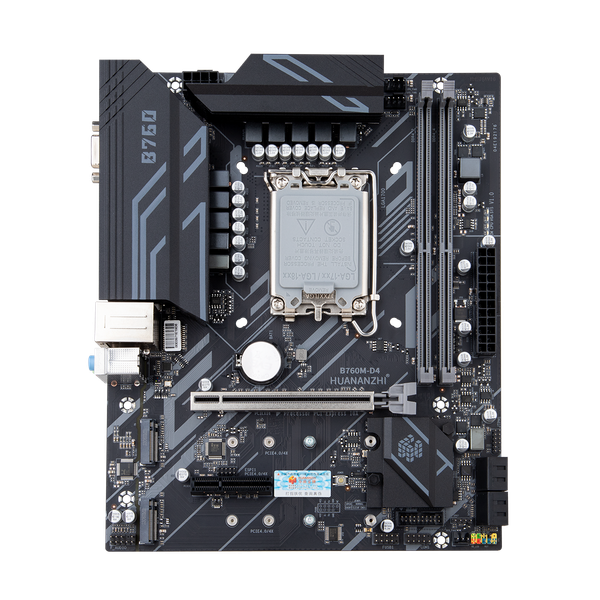

Model | HUANANZHI B760M-D4 Motherboard |
Main chipset | Intel B760 |
CPU Socket | Support Intel LGA1700 |
Memory slot | 2 x DDR4 memory slot |
Memory standard | Support Dual channels DDR4 3200/2666/2400/2133MHz (Supports XMP overclocking/CPU dependent)，Max support 64GB |
Storage interface | 4xSATA3.0 6Gbps interfaces |
Expansion Slots | 1xPCI Expressx16 4.0，1xPCI Expressx4 4.0 |
Expansion interface | 2xM.2 22110 NVME PCIE X4 4.0 |
Soud Track | Realtek High Fidelity Audio |
Network Card | Realtek Gigabit Network Card |
Power interface | 24pin+8pin |
FAN PIN | 1xCPU_FAN PIN，2xSYS_FAN PIN |
power supply | 10-phase power supply |
PCB layers | 6-layer PCB |
Dimension | 235*195MM M-ATX |

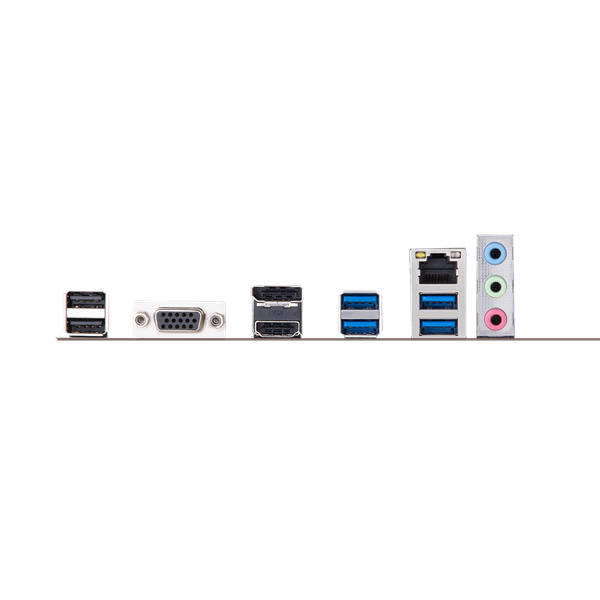

Rear panel interface | 2xUSB3.2 Gen2 10Gb/s，2xUSB2.0 480Mbps，1xVGA，1xHDMI2.1，1xDP1.4 ，1x Network card interface，1x3-hole audio interface |
Front panel interface | 1 x USB2.0 PIN 480Mbps，1 x USB3.2 PIN Gen1x15Gb/s，1 x Front audio PIN，1 xCOMPIN，1x Debug pin |
Support system | Windows10 Windows11 |
BIOS | AMI UEFI BIOS |
Packing list | 1 x Motherboard，1x SATA data cable，1xWarranty card |
